Lens Ring Joint Gasket
Providing with Lens Ring Joint Gasket free sample, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Lens Ring Joint Gasket manufacturers and suppliers in China, welcome to wholesale customized, cheap and low price Lens Ring Joint Gasket from our factory.
-
Double Jacket Gasket
Providing with Double Jacket Gasket free sample, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Double Jacket Gasket manufacturers and suppliers in China, welcome to wholesale customized, cheap and low price Double Jacket Gasket from our factory.
-
Corrugated Gaskets
Providing with Corrugated Gaskets free sample, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Corrugated Gaskets manufacturers and suppliers in China, welcome to wholesale customized, cheap and low price Corrugated Gaskets from our factory.
-
PTFE Envelope Gasket
Providing with PTFE Envelope Gasket free sample, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading PTFE Envelope Gasket manufacturers and suppliers in China, welcome to wholesale customized, cheap and low price PTFE Envelope Gasket from our factory.
-
Rubber Sheet
Providing with Rubber Sheet free sample, Ningbo Kaxite Sealing Materials Co.,Ltd is one of the leading Rubber Sheet manufacturers and suppliers in China, welcome to wholesale customized, cheap and low price Rubber Sheet from our factory.

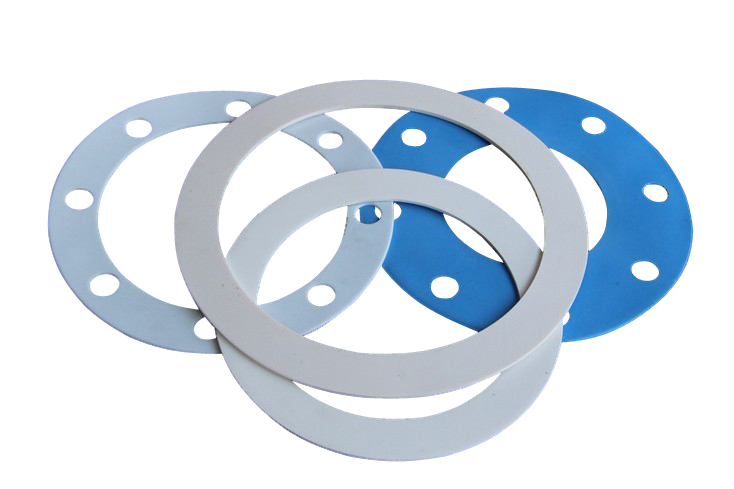

Modified PTFE Gasket
Modified PTFE gasket are in order to meet the needs of customers to different working conditions, and reduce the cost. Kaxite research and design the modified PTFE gaskets.
| Non-asbestos Series | MPTFE Series |
|
Kaxite® line offers a variety of elastomers to excel in a wide range of services. |
Modified PTFE line offers good resistance to cold flow (creep), high pressure service, and good chemical compatibility. |
KXT® Style 2200
Style 2000
Aramid fibers with a nitrile binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Aliphatic hydrocarbons
• Oils
• Gasoline
| KXT 2000 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1000 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
KXT® Style 2200
Style 2200
Aramid fibers with a nitrile binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Saturated steam
• Inert gases (meets MIL-G-24696B)
| KXT 2200 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
KXT® Style 2300
Style 2300
Aramid fibers with a neoprene binder.
Benefits
Excellent sealability
• Unique blend of aramid fibers, fillers and a SBR rubber binder provides improved torque retention and drastically lowered emissions levels
Cost savings
• Cuts operational costs through reduced: - Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption
Media
• Water
• Saturated steam
• Refrigerants
• Oils
• Fuels
| KXT 2300 Specifications | |
| Min. Temperature: | -100oF |
| Max Temperature: | 400oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE® Style 2504
Style 2504 Blue
PTFE with glass microspheres.
Benefits
Tighter Seal
• Improved performance over conventional PTFE
• Reduced product loss and emissions
Reduced creep relaxation
• Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
• Excellent bolt torque retention
Chemical resistance
• Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cost savings
• Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste
Largest sheet sizes
• Offers some of the largest sheet sizes in the industry
• Improved material utilization reduces waste
Branding and color coding
• Easy identification of superior MPTFE® products
• Reduces misapplication and use of unauthorized, inferior substitutes
Media
• Moderate concentrations of acids and some caustics
• Hydrocarbons
• Solvents
• Water
• Refrigerants
• Cryogenics, hydrogen peroxide
| MPTFE 2504 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 800 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE® Style 2510
Style 2510 Off-White
PTFE with barium sulfate filler.
Benefits
Tighter Seal
• Improved performance over conventional PTFE
• Reduced product loss and emissions
Reduced creep relaxation
• Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
• Excellent bolt torque retention
Chemical resistance
• Withstands a wide range of chemicals for extended service life in a wide variety of applications
Cost savings
• Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste
Largest sheet sizes
• Offers some of the largest sheet sizes in the industry
• Improved material utilization reduces waste
Branding and color coding
• Easy identification of superior MPTFE® products
• Reduces misapplication and use of unauthorized, inferior substitutes
Media
• Strong caustics
• Moderate acids
• Chlorine
• Gases
• Water
• Steam
• Hydrocarbons
• Cryogenics and aluminum fluoride
| MPTFE 2510 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: | 250,000 (oF x PSIG) |
MPTFE® Style 2545
Style 2545
PTFE Gasketing with aluminosilicate microspheres
Benefits
Tighter Seal
• Highly compressible PTFE outer layers seal under low bolt load-suitable for many non-metallic flanges
• Compressible layers conform to surface irregularities, especially on warped, pitted or scratched flanges
• Rigid PTFE core reduces cold flow and creep normally associated with conventional PTFE gaskets
Excellent chemical compatibility
• Pure PTFE withstands a wide range of chemicals
Easy to cut and install
• Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime
• Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas
Media
• Strong caustics
• Strong caustics
• Strong acids
• Hydrocarbons
• Chlorine
• Cryogenics
• Glasslined equipment
• Plastic piping
• Low bolt load applications
| MPTFE 2545 Specifications | |
| Min. Temperature: | -450oF |
| Max Temperature: | 500oF |
| Min. Pressure: | 1200 (PSI) |
| Maximum PxT 1/16: | 350,000 (oF x PSIG) |
| Maximum PxT 1/8: |
250,000 (oF x PSIG) |
